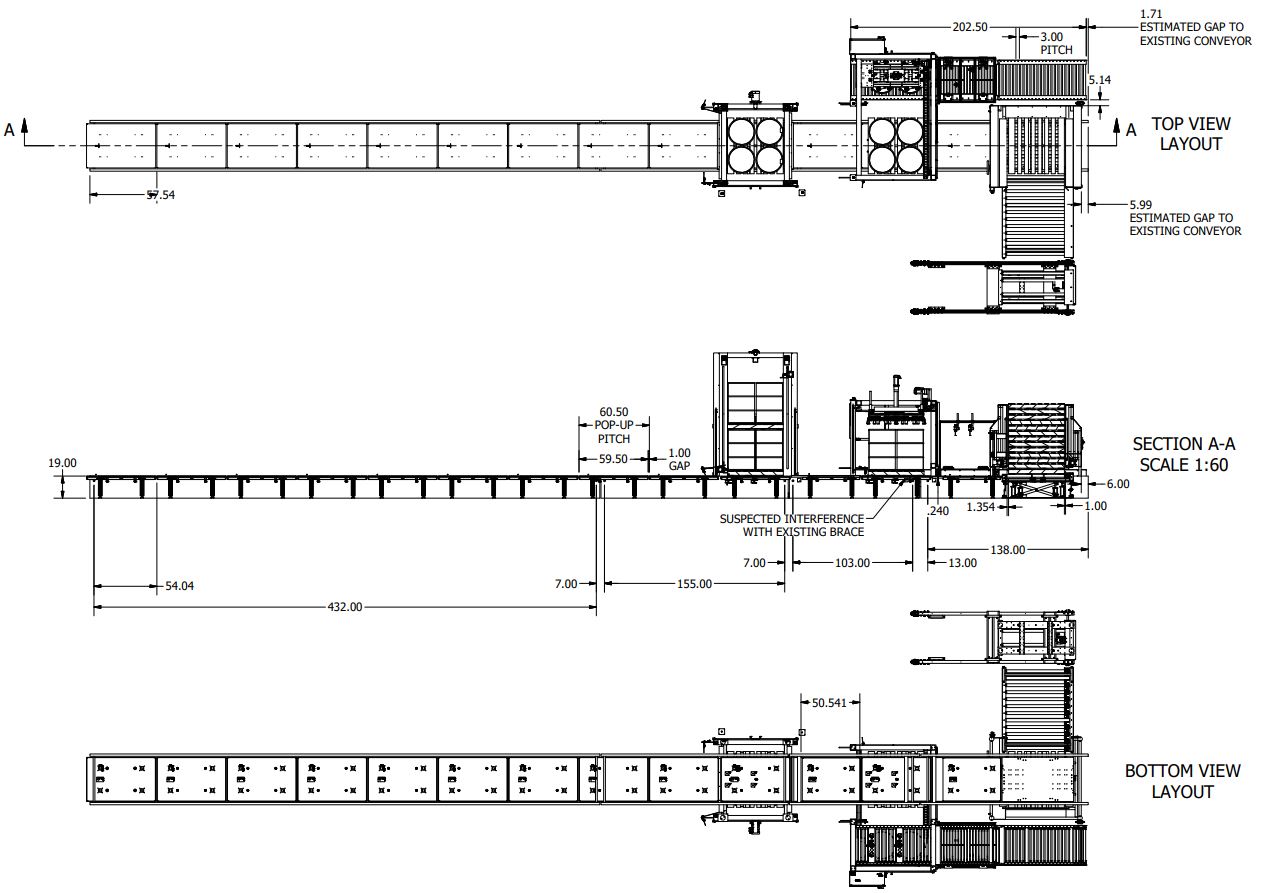

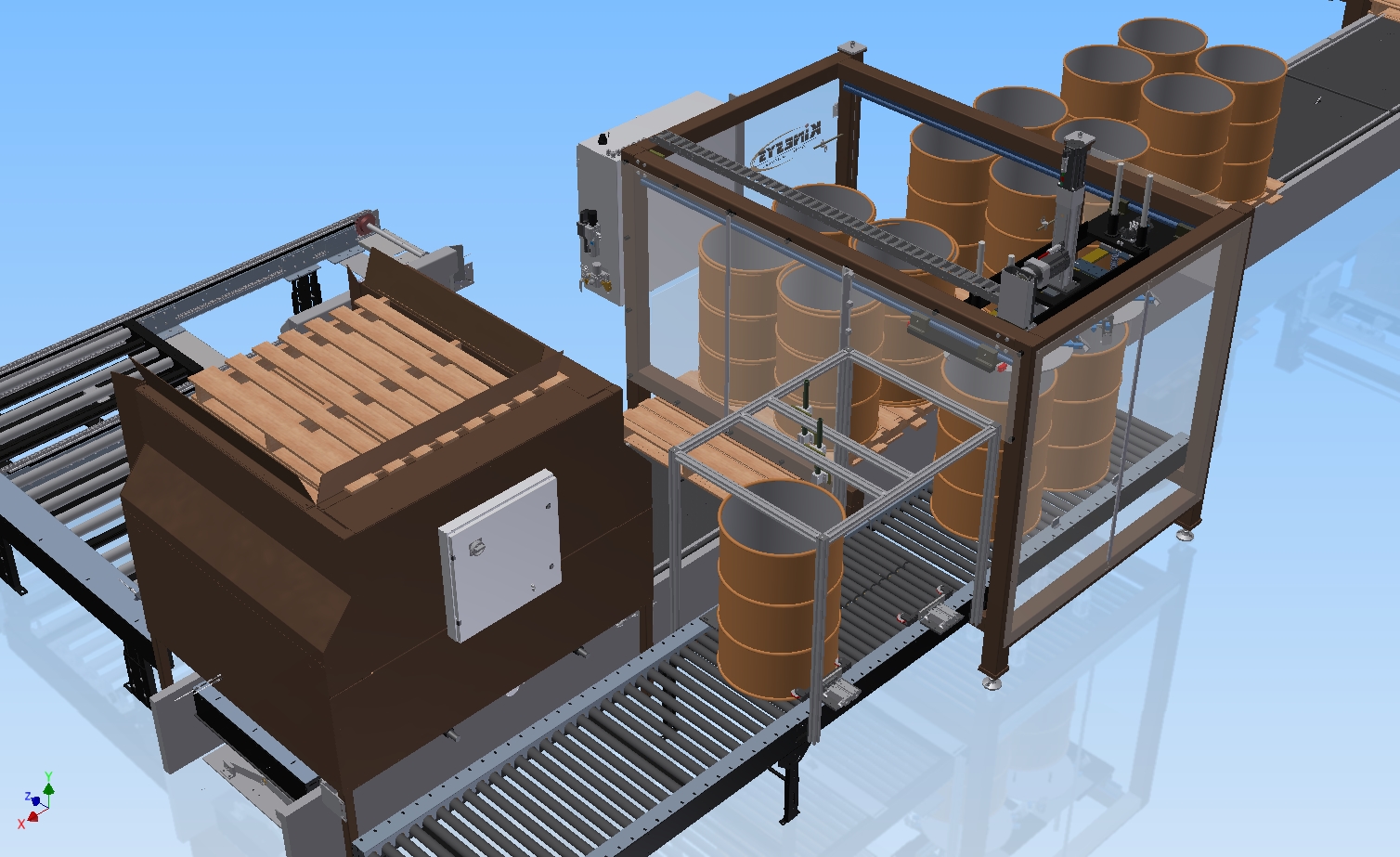

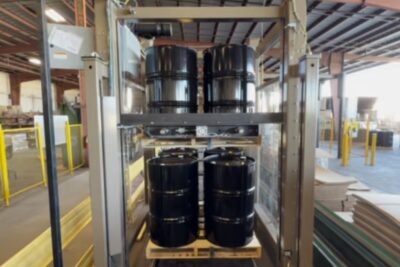

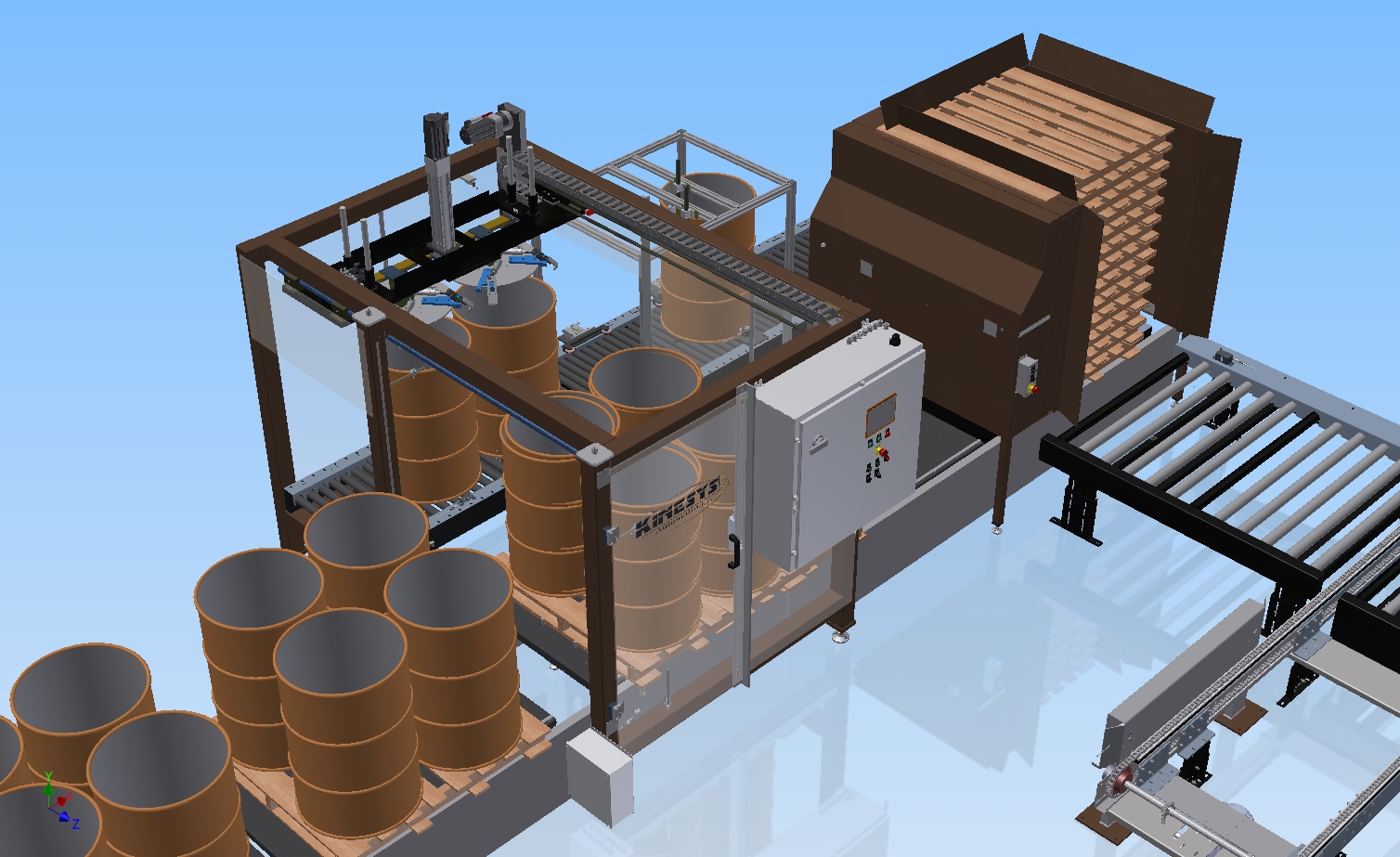

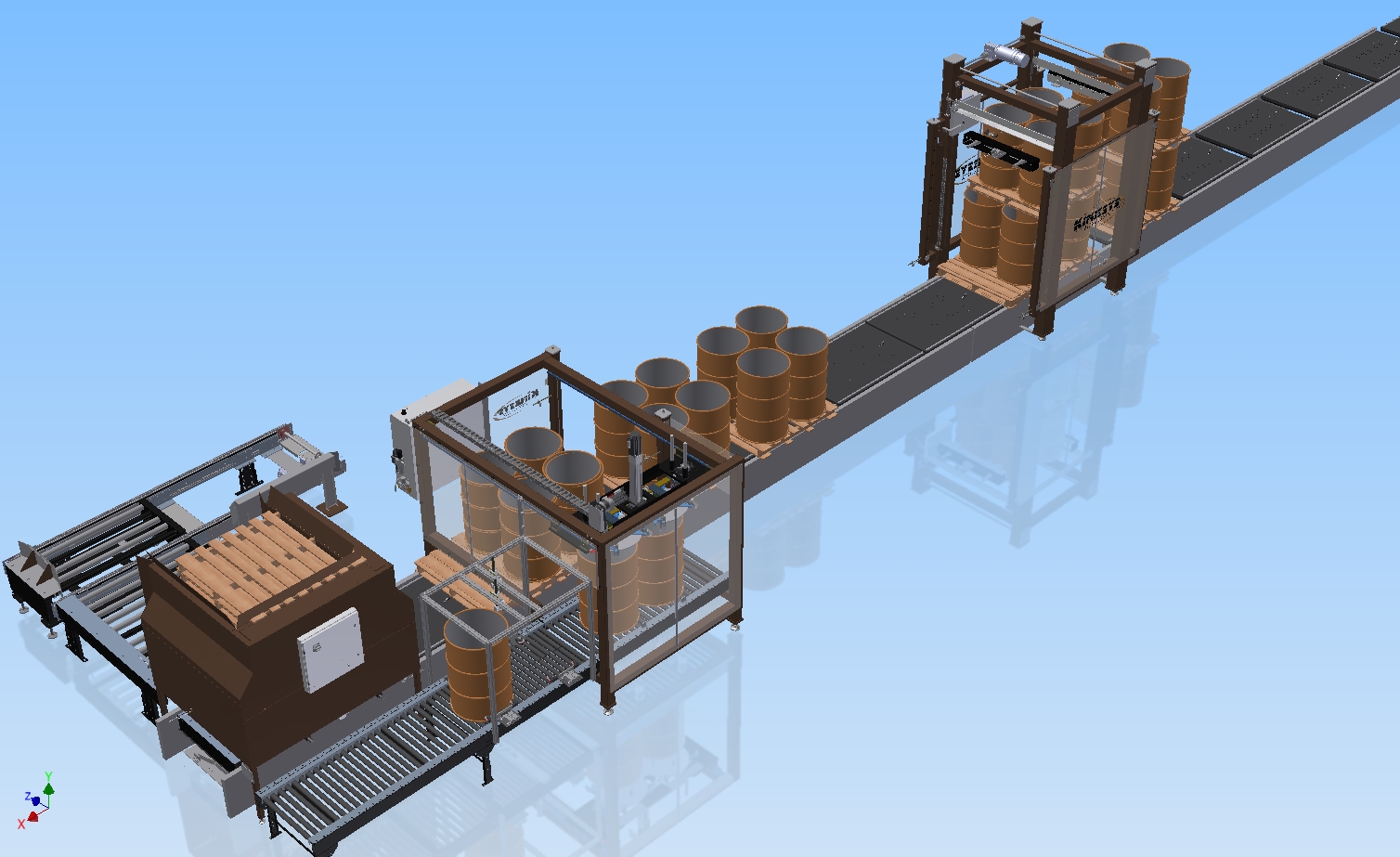

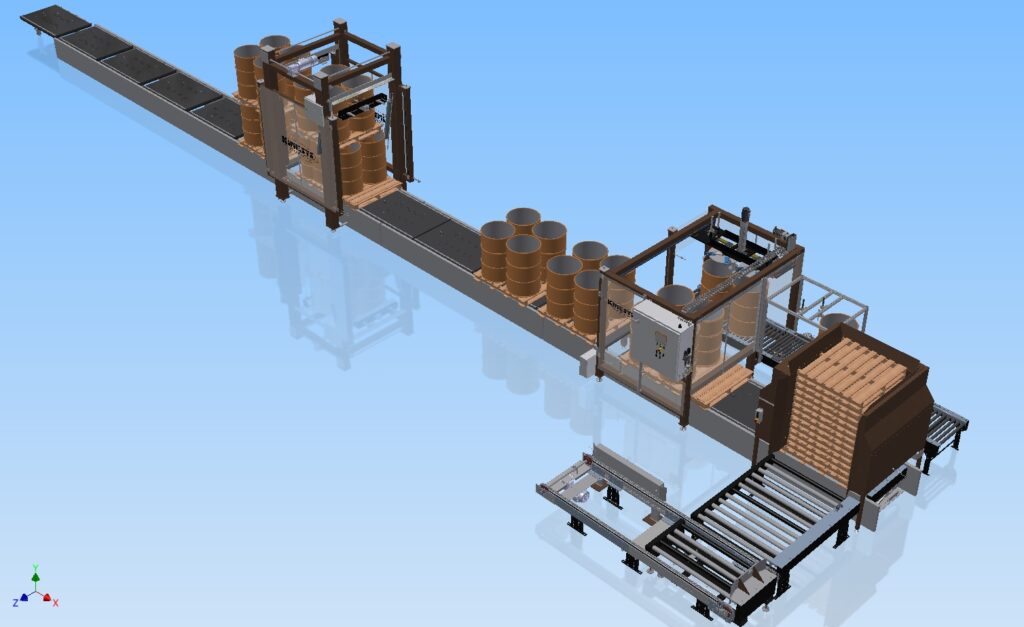

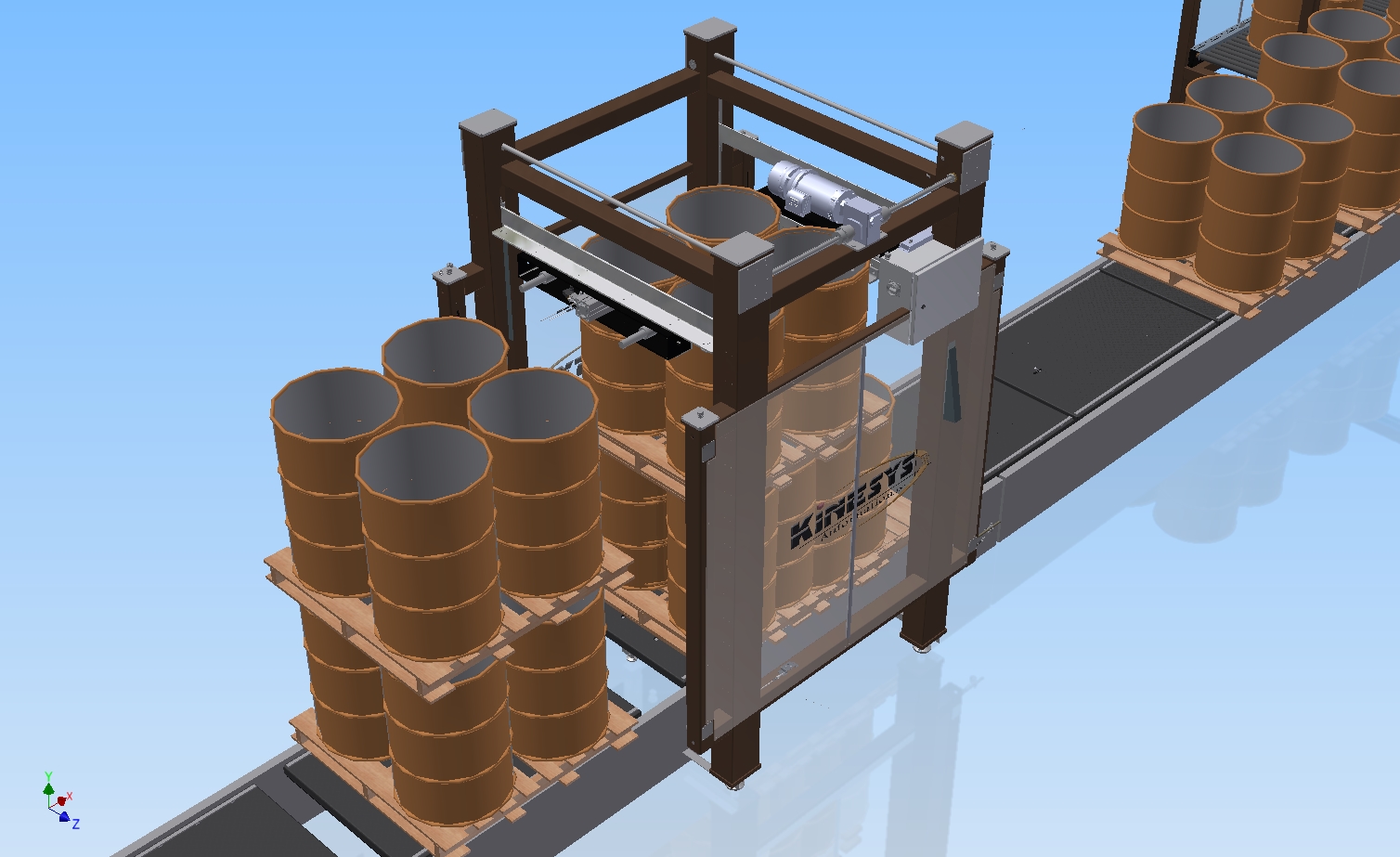

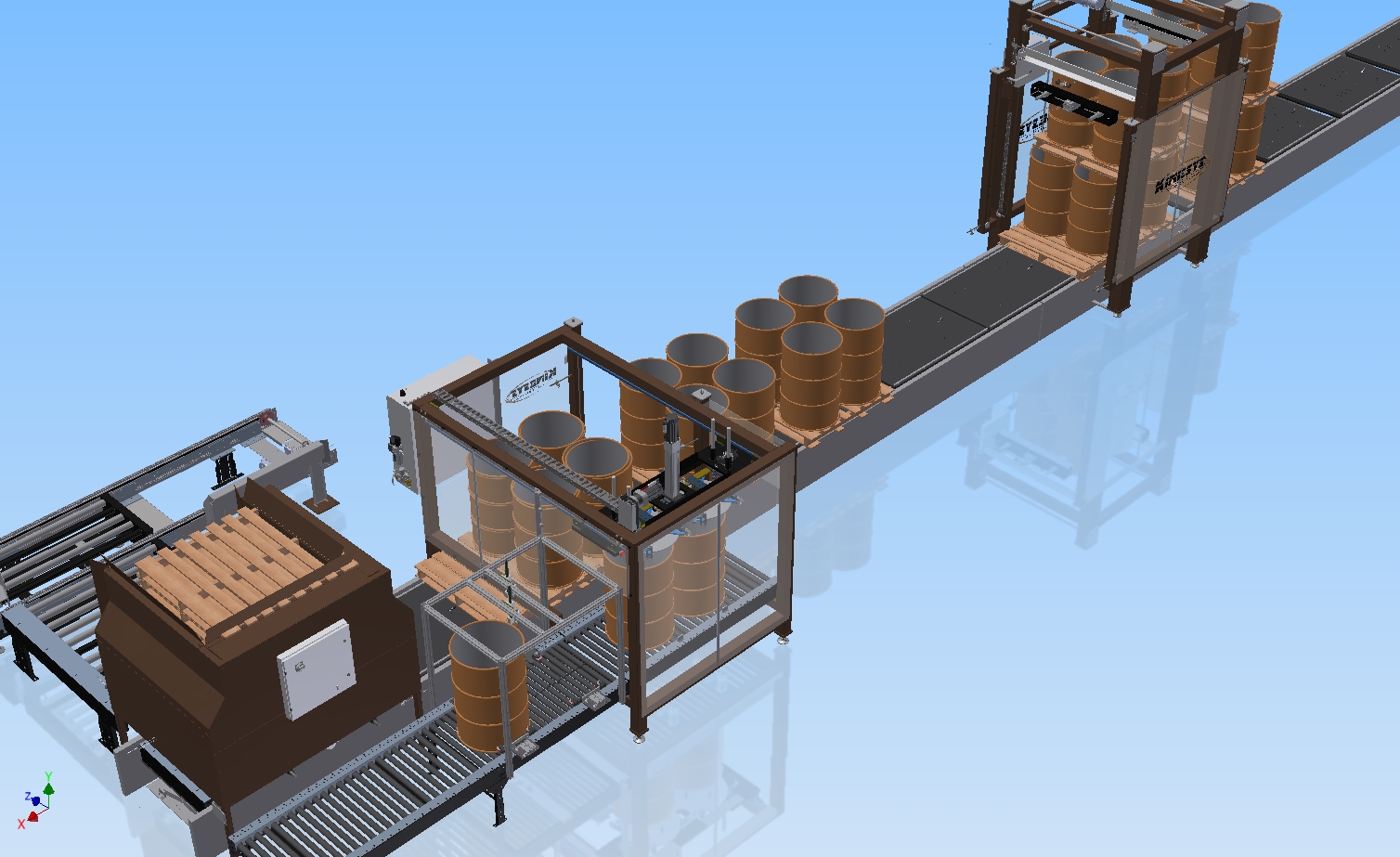

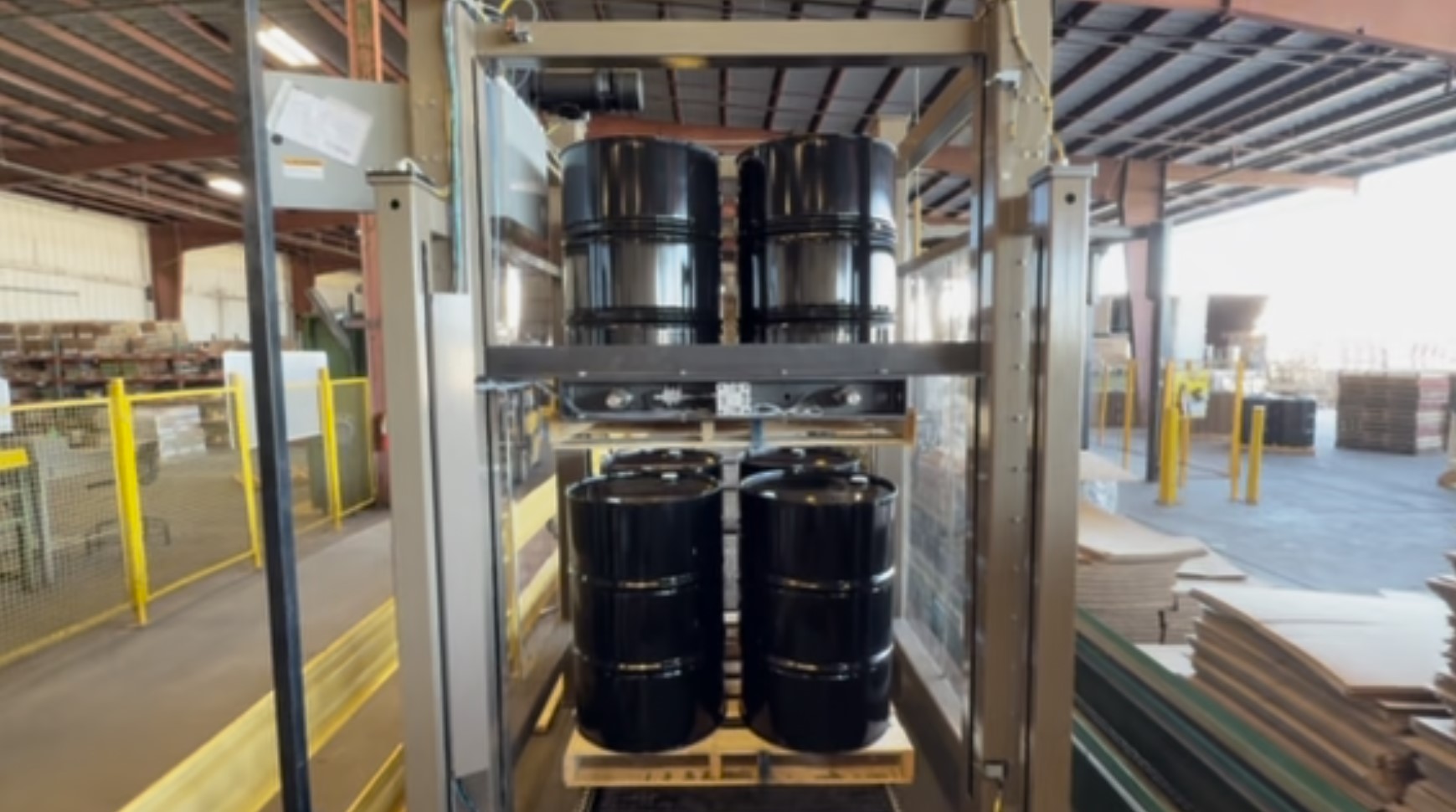

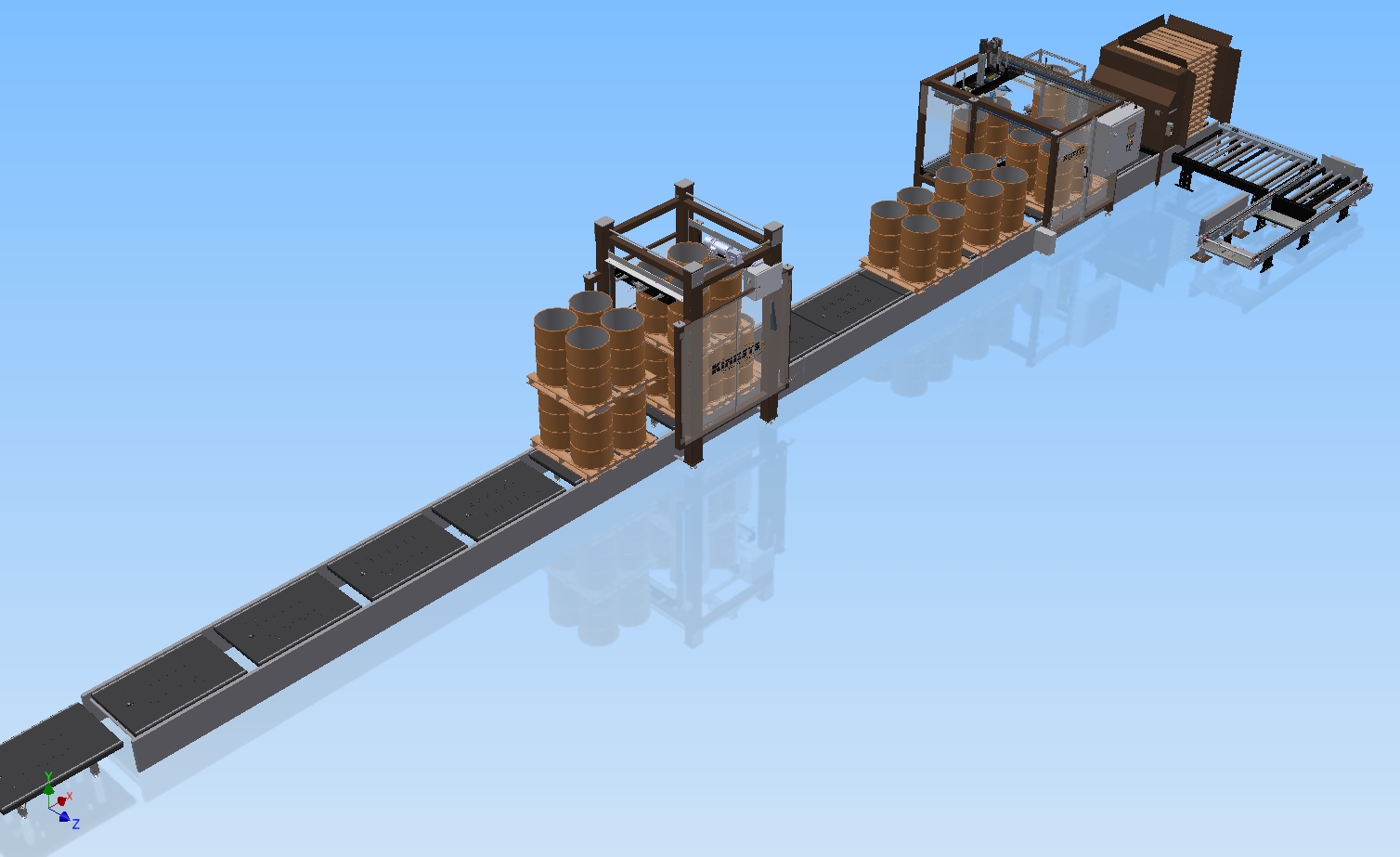

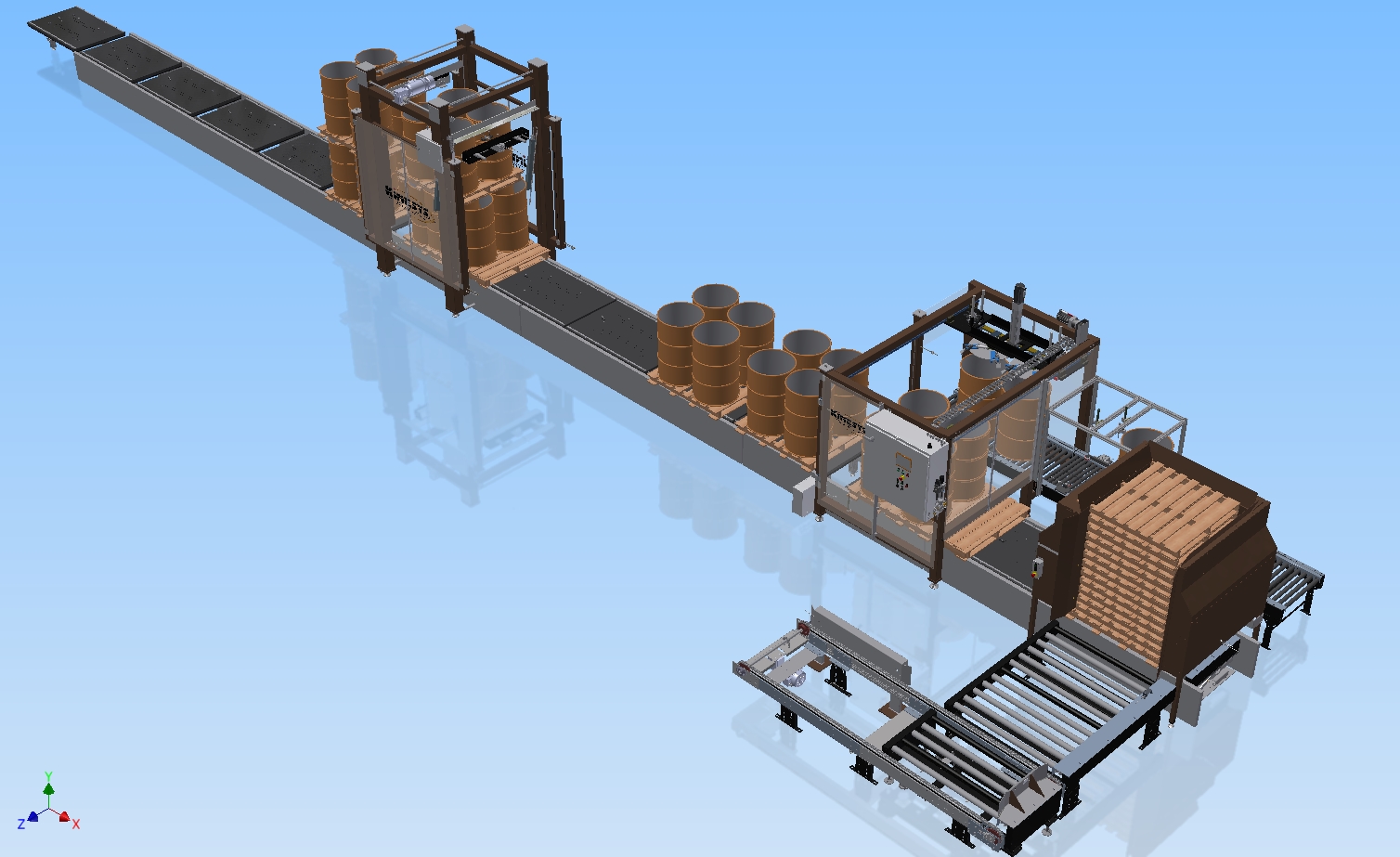

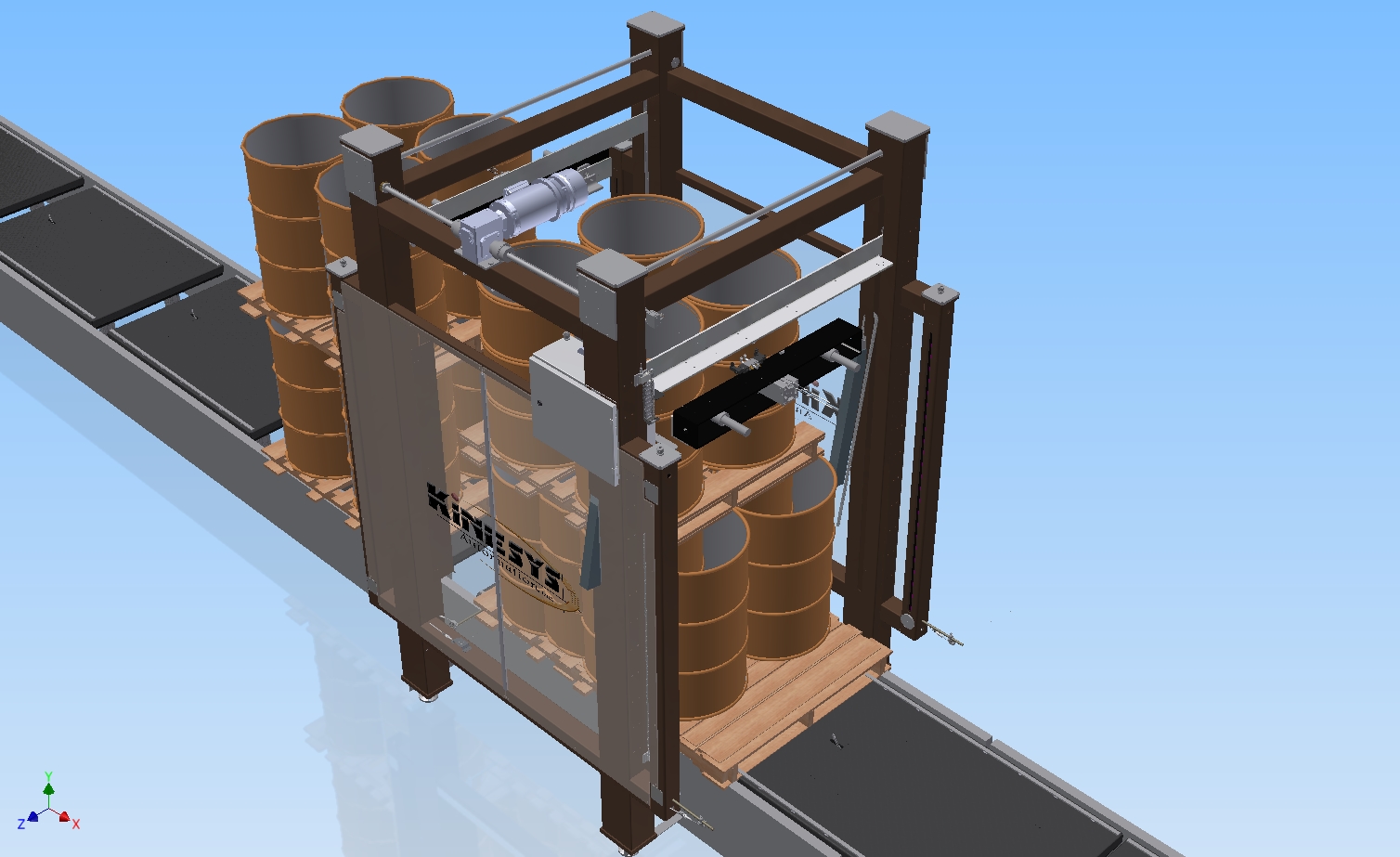

KA-23-003 – A 2-head drum palletizer positions 4 drums on a pallet having previously been ejected by a pallet dispenser, and releases the completed pallet into a pallet stacker. The pallet stacker raises the pallet with drums up, allowing a second pallet with drums to move in underneath it. The raised pallet is then lowered onto the lower pallet , and together they are moved down the line. The completed pallets are moved by a drag chain conveyor, which is zoned with pop-up tables.
Line Configuration
- Power: 460 VAC, 80PSIG
- Max Throughput: up to 10 containers per minute
- Container Types: 55 gallon drums, open head & closed head

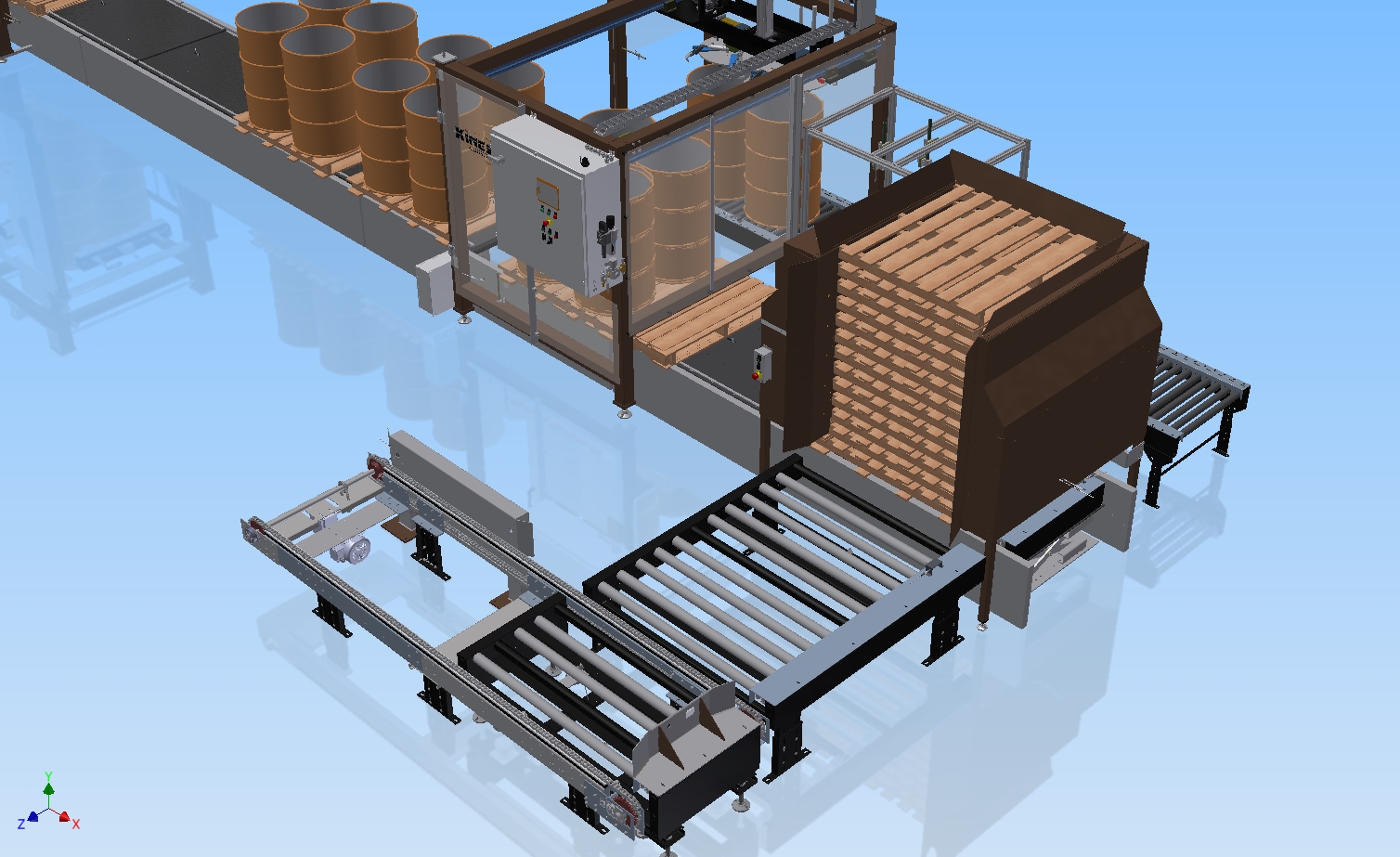

Pallet Dispenser
- Pallets per Stack: holds up to 11 pallets
- Pallet Size: 44″ x 44″ x 5″, 45″ x 45″ x 5″, 46″ x 46″ x 5″, 47″ x 47″ x 5″, 48″ x 48″ x 5″

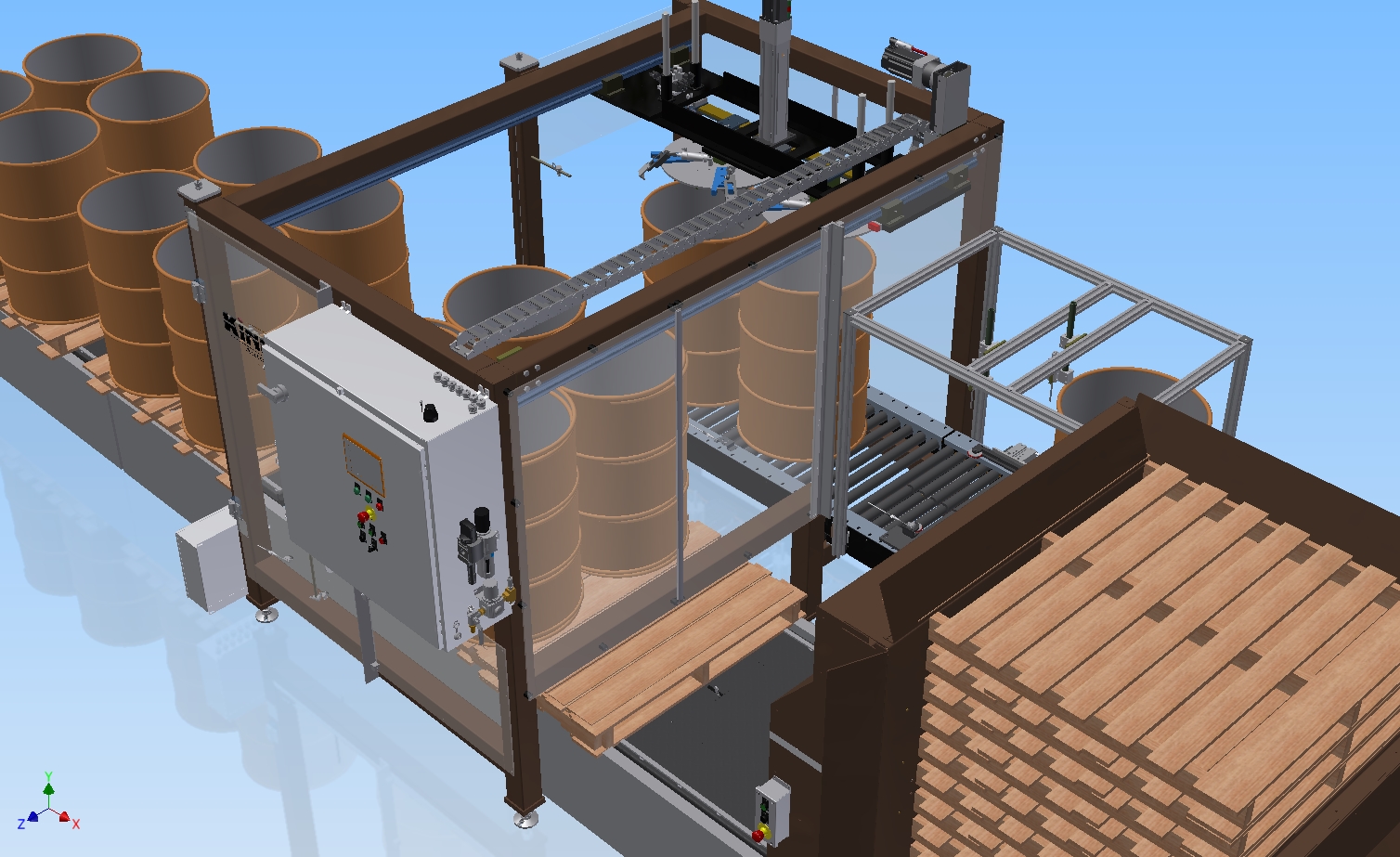

Palletizer
- Type: 2-head, high throughput
- Z-Axis: servo
- Max Pallet Height: up to 60″
- Pallet Patterns: 2×2 array
- Safety: full length light curtain
Conveyors
- Pails: Poly-V Belt, 1.9″ roller diameter with DC powered roller
- Pallets: CDLR, 2-1/2″ roller diameter with DC powered roller, dual zone
