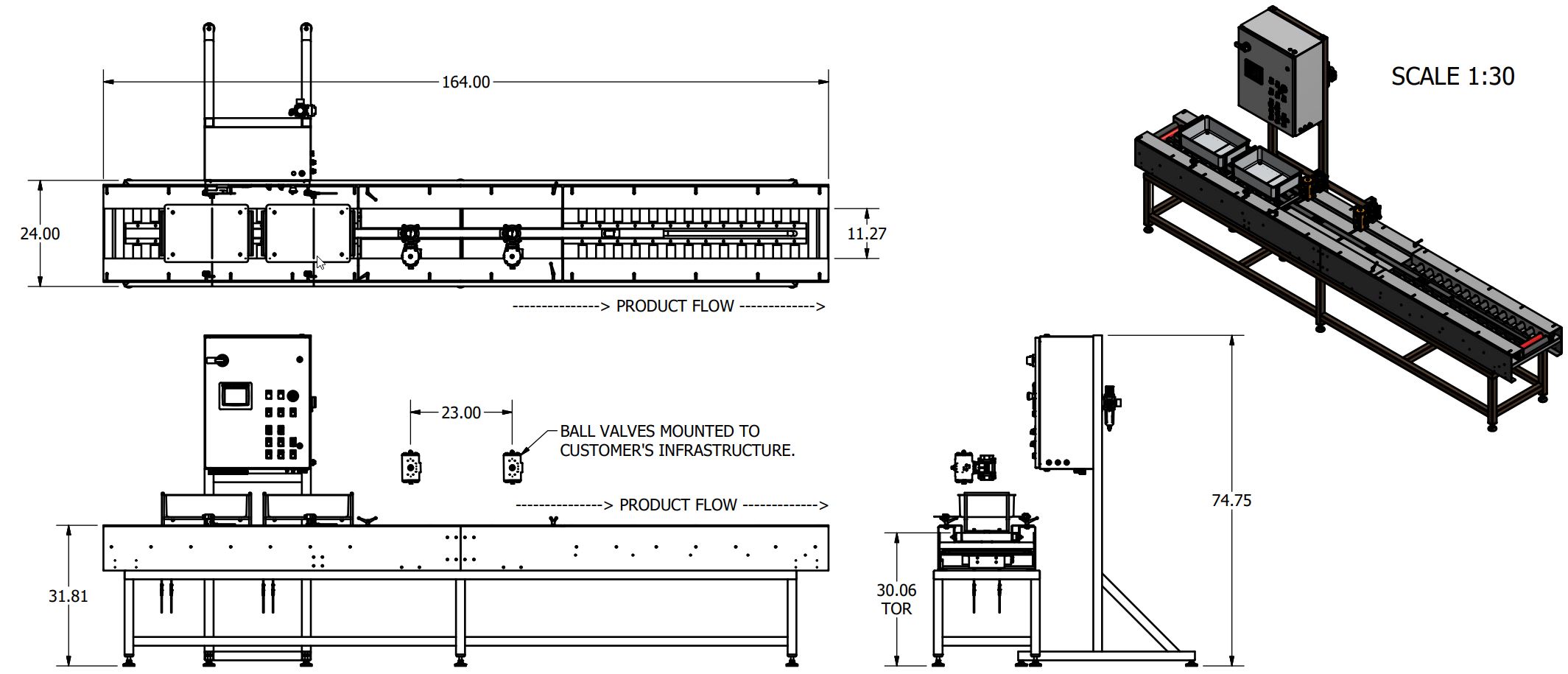

KA-16-031 – Kinesys Automation has developed a dual head net-weigh tray filler. Trays are automatically advanced by a pneumatically actuated stainless steel reciprocating beam, equipped with spring loaded fingers that capture the edge of the trays, advancing them by 2 stations per index cycle. Walking-beam assembly may be quickly and easily disassembled for cleaning and washdown. Trays are positioned on top of stainless steel platforms, shrouding the digital scales during any accidental spills. System includes independently actuated ball valves, dedicated for each station, allowing precise filling of each tray independent of the other.

4

Machine Configuration

  • Power: 460VAC, 80PSIG
  • Max Throughput: up to 8 trays per minute
  • Container Types: trays
  • Machine Length: 164 inches (12.67 ft)
  • Machine Width: 24 inches (2 ft)

Options

  • Filling Type: net-weigh (gravimetric)
  • Number of Heads: two
  • Valve Type: ball valve
  • Filling Material: thick tar
